Service
Commissioning & Qualification
C&Q Overview
From GMP Design to Validation —
Every Step Verified,
Confidence Built
GMP 기반 설계에서 밸리데이션까지,
신뢰의 모든 단계를 검증합니다.
설비와 시스템이 GMP 요구사항과 품질 기준에 따라 일관되게 작동함을 과학적 데이터와 문서화된 절차로 입증하는 것이 C&Q의 핵심입니다.
Commissioning
시운전
Commissioning은 설비 및 시스템이 설계 사양에 따라 설치 및 정상 작동되는지를 검증하는 초기 단계입니다.
설계대로 설치되었는가?
실제 조건에서 작동하는가?
이 과정은 FAT (Factory Acceptance Test) 및 SAT (Site Acceptance Test)를 기반으로 수행되며, 향후 Qualification 단계의 효율성 향상 및
품질 리스크 최소화에 중요한 역할을 합니다.
Qualification
적격성 평가
Qualification은 제조설비, 유틸리티, 자동화 시스템 등이 GMP 기준과 품질 요구사항을 충족하는지를
정량적 데이터와 문서화된 절차를 통해 입증하는 단계입니다.
데이터 기반 검증
품질 신뢰성의 핵심
이 단계는 단순 설치 확인을 넘어, 품질리스크를 사전에 통제하고 과학적 근거를 갖춘 품질 시스템을 구축하는데 핵심이 됩니다.
각 단계는 설계부터 실제 성능까지 모든 과정을 포괄하며, 밸리데이션 전략의 핵심 축입니다.
Focus on C&Q

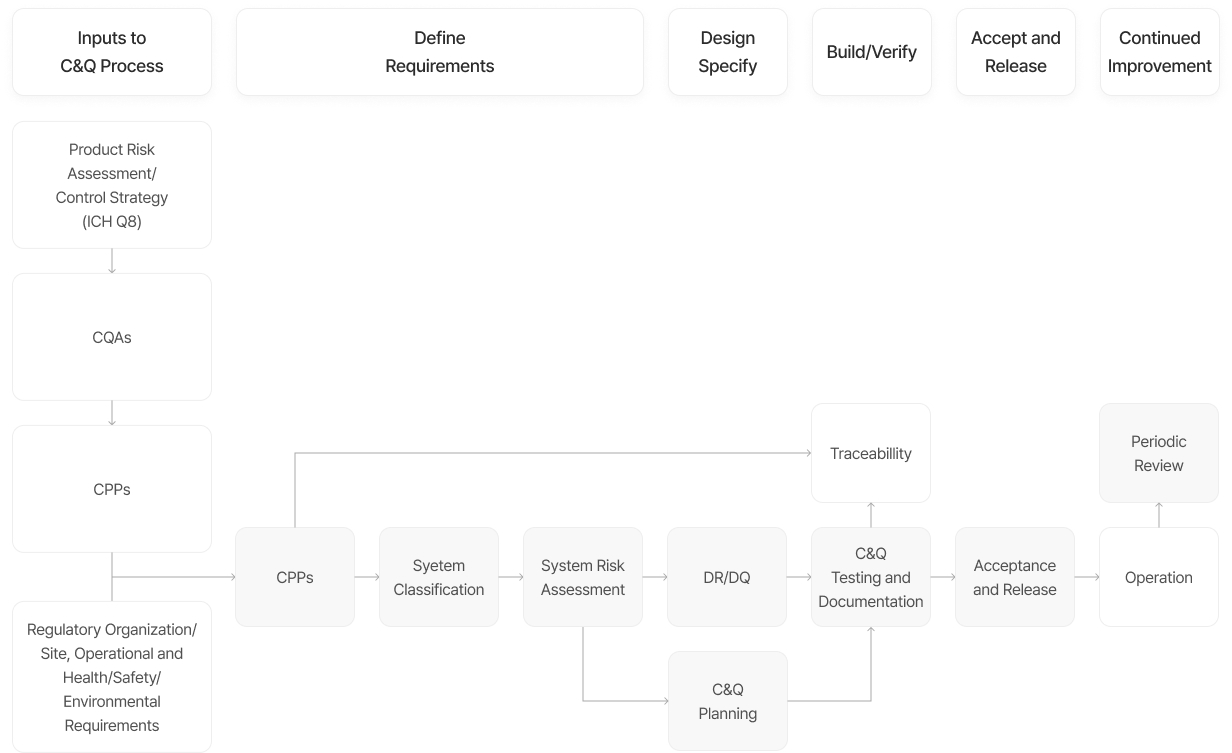

Science & Risk-Based C &
Q Process Map
, source: ISPE Guide
C&Q 생애주기: 주요 단계 및 산출물
Clearly structured lifecycle with defined stages and fully traceable documentation.
| Stage | Key Activities Summary | Key Deliverables |
|---|---|---|
| A. Project Initiation & Planning | Define the project scope, objectives, and budget; form the C&Q team; and develop a VMP or CQP outlining strategy, roles, and documentation. | Project Plan, VMP or CQP |
| B. User Requirements Specification (URS) | Define user needs, including functional, performance, regulatory, and documentation requirements. | URS Document, Initial RTM (linking URS to specifications and testing strategy) |
| C. Risk Assessment & System Classification | Identify and assess risks to product quality and patient safety, classify systems, and apply a risk-based testing approach. | Risk Assessment Report, System Impact Assessment |
| D. Design Qualification (DQ) | Verify that the design meets URS and regulatory requirements through review of design documents and specifications. | DQ Protocol & Report, Updated RTM (linking URS to DQ evidence) |
| E. Commissioning | A documented engineering process to prepare systems for operation, including installation checks, functional testing, and utility verification. | FAT/SAT Protocols & Reports, Punch List, Updated RTM (linking URS to commissioning activities such as FAT/SAT and functional testing) |
| F. Installation Qualification (IQ) | Verify and document proper installation per design, codes, and standards, including components, utilities, materials, and instrument calibration. | IQ Protocol & Report, Updated RTM (linking URS to IQ test evidence) |
| G. Operational Qualification (OQ) | Documented testing to confirm the system performs as intended within defined operating ranges by challenging key parameters. | OQ Protocol & Report, Updated RTM (linking URS to OQ test evidence) |
| H. Performance Qualification (PQ) | Verify consistent system performance under real or simulated conditions to ensure it meets quality requirements over time. | PQ Protocol & Report, Final RTM (demonstrating complete traceability from URS through PQ results) |
| I. Process Validation (PV) | Validate the manufacturing process to ensure consistent production of quality-compliant products after equipment qualification. | PV Protocol & Report |
| J. Ongoing Monitoring & Maintenance | Maintain and monitor systems regularly to ensure continued compliant operation after qualification. | Maintenance Schedules, Calibration Records |
| K. Revalidation / Change Control | Significant changes require change control and may involve re-commissioning, re-qualification, or revalidation to ensure compliance. | Change Control Documents, Revalidation Protocols & Reports |
* All activities are systematically aligned with the User Requirement Specification (URS) via a dynamic Requirement Traceability Matrix (RTM), ensuring complete traceability from start to finish.
Reference Guidelines
Key Global Standards for C&Q Implementation
ISPE Baseline®
Guide Vol. 5 (2nd Edition)
Main Focus
C&Q principles and execution
Key Notes
- - Industry standard guideline
- - Based on ASTM E2500
- - Risk-based approach
- - Minimize overlap between engineering and validation
ASTM E2500-25
Main Focus
Risk-based system design & verification
Key Notes
- - Focus on 'Critical Aspects'
- - Simplified documentation
- - Optimization of IQ/OQ
EU GMP Annex 15
Main Focus
GMP-based validation framework
Key Notes
- - Clear definition of DQ/IQ/OQ/PQ
- - Requires change control & re-qualification
- - Includes cleanroom, HVAC, automation equipment
WHO TRS 1019
(Annex 3)
Main Focus
WHO validation guideline
Key Notes
- - Covers entire facility validation
- - Includes C&Q and process validation
- - Reference for global public health bodies
From Design to Qualification:
We Build Validation Confidence
파마프런티어는 ISPE, ASTM E2500, EU GMP Annex 15 등 글로벌 기준과 풍부한 프로젝트 경험으로 설계부터 Qualification 및 Validation까지 전 과정에 걸친 체계적이고 효율적인 C&Q 전략을 제공하며 전략적 기획과 위험 기반 검증, 실행 전문성을 바탕으로 GMP 환경의 신뢰 기준을 만듭니다.
